Type 304 Stainless Steel 45° Elbow Butt Weld Fitting | Specifications

Brand Name : YUHAO

Model Number : Butt Weld Pipe Fittings

Certification : ASTM, AISI, GB, DIN, JIS

Place of Origin : China

MOQ : 100kgs

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000tons/per month

Delivery Time : 15days

Packaging Details : Standard sea worth bundles,Standard Plywood cases

Wall Thickness : Sch5-SCH160

Standard : ASTM, AISI, GB, DIN, JIS

Surface Finish : Polished, Brushed, Matte, Sandblasted

Material : 304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.

Pipe Fitting Type : Concentric reducer

Connection Type : Butt Welded

Application : Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding

Diameter Range : DN15-DN900

Corrosion Resistance : High Corrosion Resistance

Size : 1/2" up to 110"

Package : Wooden box or Pallet or carton

Contact Now

Type 304 Stainless Steel 45° Elbow Butt Weld Fitting | Specifications
Product Specifications
Attribute Value
Wall Thickness Sch5-SCH160
Standard ASTM, AISI, GB, DIN, JIS
Surface Finish Polished, Brushed, Matte, Sandblasted
Material 304, 304l, 316, 316, 321, 347h, 310s, s31803, 2205, etc.
Pipe Fitting Type Concentric reducer
Connection Type Butt Welded
Application Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Shipbuilding
Diameter Range DN15-DN900
Brand Name Yuhao
Corrosion Resistance High Corrosion Resistance
Place of Origin China
Size 1/2" up to 110"
End Bevel end ANSI B16.25
Package Wooden box or Pallet or carton
The 304 Stainless Steel 45° Elbow is one of the most widely used piping components for directional changes. Composed of 18% chromium and 8% nickel, Grade 304 offers excellent corrosion resistance in a variety of environments, making it a cost-effective and reliable choice.
​​Why Choose Our 304 SS 45° Elbow?​​
  • ​​General Purpose Performance:​​ Ideal for handling mild chemicals, organic materials, and food-grade substances.
  • ​​High-Temperature Resistance:​​ Maintains strength and oxidation resistance at elevated temperatures.
  • ​​Ease of Fabrication:​​ Excellent weldability allows for easy and strong butt-welded joints.
  • ​​Hygienic Surface:​​ The smooth, non-porous surface prevents bacterial growth, suitable for sanitary applications.

​​Common Applications:​​
  • Food, Beverage, and Dairy Processing
  • Pharmaceutical and Biotech Plants
  • Water Treatment and Distribution
  • Architectural and Decorative Handrails
  • General Chemical and Petrochemical Services

​​Technical Specifications:​​ Material: AISI 304 / UNS S30400; Standards: ASME B16.9; Pressure Rating: Sch 40, 80, 160, etc.

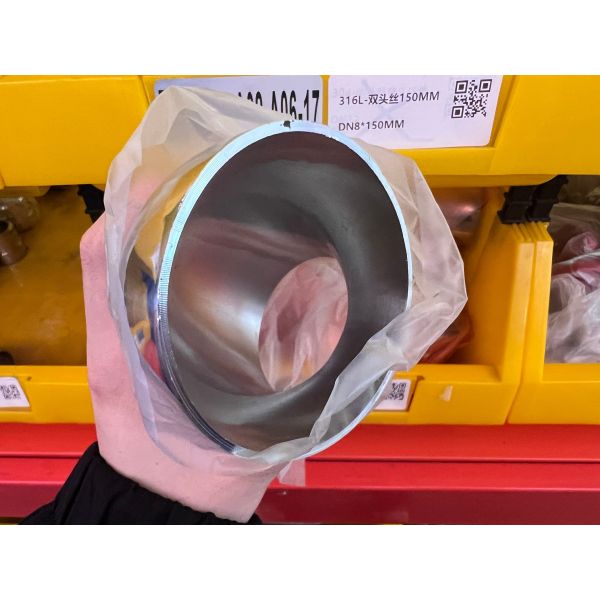

Type 304 Stainless Steel 45° Elbow Butt Weld Fitting | Specifications

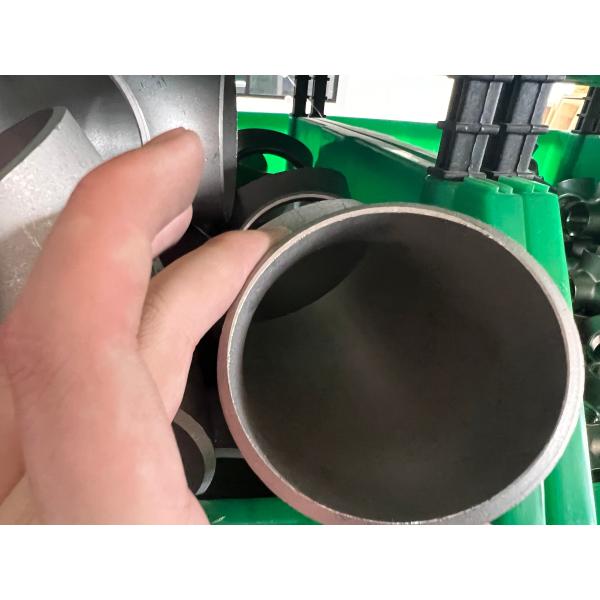

Type 304 Stainless Steel 45° Elbow Butt Weld Fitting | Specifications

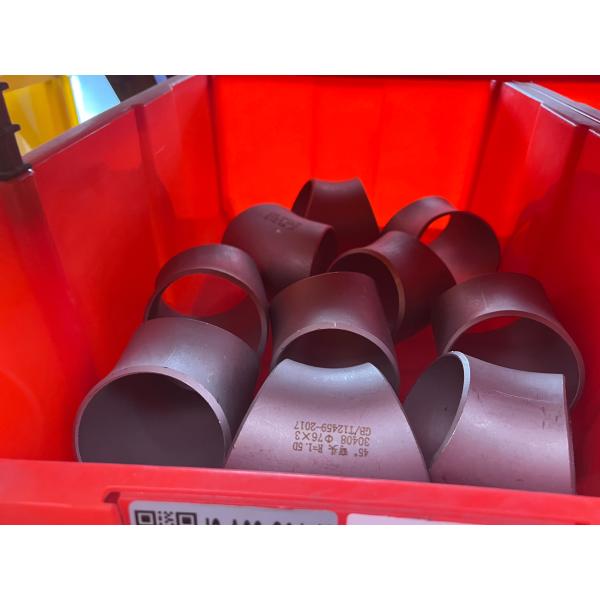

Type 304 Stainless Steel 45° Elbow Butt Weld Fitting | Specifications
