304, 304L, 306, 306L ANSI SS Slip On Flange SS Pipe Fittings DN15~DN2000
Product Attributes
| Attribute | Value |
| Material | 304, 304L, 306, 306L |
| Application | Connection, Decoration, oil and gas |
| Standard | ASTM, AISI, GB, JIS |
| Shape | Raising face, Flat face, Tongue face, Groove face... |
| Package | Standard Seaworthy Packagel, wooden cases... |
| Certification | ISO, API, BV, CE ... |
| Connection | Welding |
| Pressure | Class150/300/600/9001500/2500 |
| Technique | Forged |
| Model Number | DN15~DN2000 |
Product Description
Stainless steel slip-on flanges with hubs are integral components in process piping systems, engineered to facilitate straightforward installation while maintaining mechanical integrity and leak-tight performance. These flanges incorporate a protruding hub, which enhances structural support and promotes smoother fluid transition by minimizing turbulence at the joint.
Fabricated from corrosion-resistant stainless steel grades—such as ASTM A182 F304/L, F316/L, or duplex alloys—these flanges exhibit excellent resistance to aggressive chemical environments, elevated temperatures, and internal pressures. The slip-on configuration simplifies axial alignment during assembly and requires fillet welds on both the inner and outer diameter for secure attachment to the mating pipe, thereby ensuring long-term reliability under dynamic operating conditions.
Widely employed in industries such as chemical processing, petrochemical refining, pharmaceutical manufacturing, and food-grade systems, stainless steel slip-on hub flanges offer a cost-effective and durable solution for low to moderate pressure applications where corrosion resistance and hygienic standards are critical.
Product Size
| DN | Pipe OD | Connection Size | Flange Thickness(mm) | C | Flagne ID | A | B | Flange OD | Bolt Hole Circle Diameter | A | B |
| 10 | 17.2 | 14 | 90 | 60 | 14 | 18 | 15 |
|
|
|
|
| 15 | 21.3 | 18 | 95 | 65 | 14 | 22.5 | 19 |
|
|
|
|
| 20 | 26.9 | 25 | 105 | 75 | 16 | 27.5 | 26 |
|
|
|
|

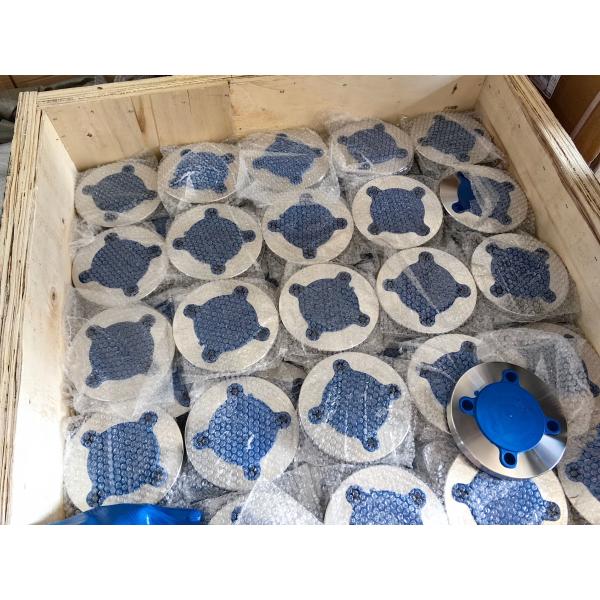

Product Images
Frequently Asked Questions
Q1: Do YUHAO produce non-standard item?
A: Yes, we do. Send your specification drawings to our sales representative, then you will get a quotation.
Q2: Can you supply what's the service?
A: We can supply the kinds of metal raw materials and products, such as pipes, pipe fittings, flanges, coil, sheet, round bar and so on.
Q3: Do YUHAO provide samples?
A: Yes, stored samples are totally free. Please note that we do not cover express shipping costs for samples.
Q4: What about your delivery time if we placed order?
A: We maintain large ready stock, and can typically deliver within 2-10 days.
Q5: Which payment terms you can accept?
A: We accept TT, LC, DP, DA, Western Union or other negotiable payment methods.
